ENGINEERED FOR YOUR RIDE.

WP XPLOR PDS (2017-2023)


SHOCK SERVICE

shock revalve

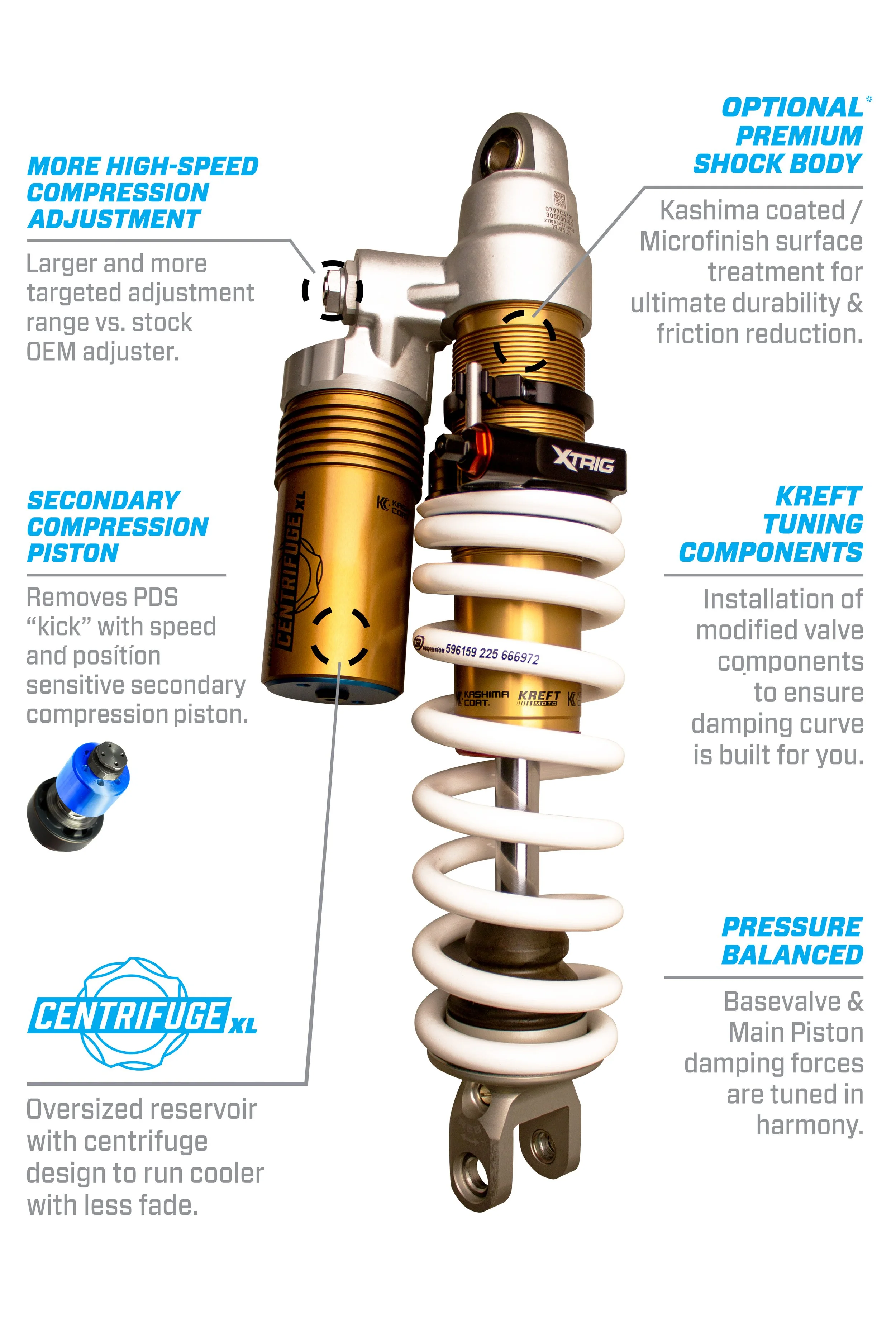

  • NEW Kreft Moto Secondary Compression Piston that removes PDS “kick” by using a speed and position sensitive secondary compression piston.

  • NEW Modified Kreft Moto tuning parts installed to ensure damping curve is built / tailored to you.

  • NEW High-Speed Compression (HSC) adjustment, with larger and more targeted adjustment range.

  • CUSTOM Valving setting tailored for your terrain, speed, riding style, height, and weight.

  • IMPROVED Firm But Plush damping curves better matched to your needs.

  • Designed for use with the Kreft Moto XPLOR ReValve Control fork.

  • Includes all services provided in a rebuild.

  • Year specific damping profiles for consistent feel across KTM, Husqvarna, and GasGas off-road motorcycles.

  • Highly recommend pairing with the Centrifuge XL Reservoir and Kreft Moto Premium Shock Body.

shock service only

  • Your shock is completely disassembled, cleaned, and restored to like-new condition.

  • Internal components are inspected for wear or damage.

  • Refill with WP shock fluid.

  • Vacuum bleed.

fitment

KTM: 2017-2023 XC-W / XCF-W / EXC / EXC-F / SIX DAYS EDITION

ADDITIONAL optionS

BASELINE PRICING

Revalve - $295 USD

Service Only - $150 USD

Note: cost of wear parts and fluid not included // not available for DIY installation.







ready to ship?

Once you fill out a Rider Info Form (RIF) and place a $500 deposit, we can send you our custom Kreft Moto shipping box and an initial outgoing shipping label totally free! Click here for more information.




Technical Overview

STOCK XPLOR PDS SHOCK PERFORMANCE ISSUES:

  • Poorly balanced with the XPLOR front suspension

  • Lacks compliance on square-edged obstacles

  • Overactive top-out behavior is reminiscent of previous PDS shock designs, creating a "kick" on rollers and whoops, and exaggerating fork dive

  • Bouncy character exacerbates chassis fore-aft stability

  • Smaller 46mm shock body has reduced fluid volume, making it vulnerable to overheating and fade

Want more info?  Watch our video review of the stock XPLOR suspension.




OUR SOLUTION

Despite the XPlor PDS shock's limitations, we consider it a solid platform for development. Certainly it is a stronger starting point than the stock XPlor fork. We were able to successfully address each problem area without the need for a major design revision (as was required for the XPlor fork).

  • Designed to be paired with the Kreft XPlor Revalve Control fork

  • Dished main piston creates a solid platform for aggressive riding

  • Reduced high speed compression for square-edge bump compliance

  • Rebound damping curve designed to control top-out motion without causing packing

  • High viscosity-index shock fluid for heat stability
